The COMBAT Series was developed using high-efficiency components to ensure sound fidelity and real amplification power. Its compact and modern design offers excellent thermal dissipation, making it ideal for those seeking performance and reliability in any setup.
Full 4-Channel Amplification
Can be used in STEREO or BRIDGE mode, offering maximum flexibility for systems with one or more combined speakers.
Wide Frequency Response: 10Hz to 20kHz
Designed to deliver deep bass and crisp highs with high audio clarity.

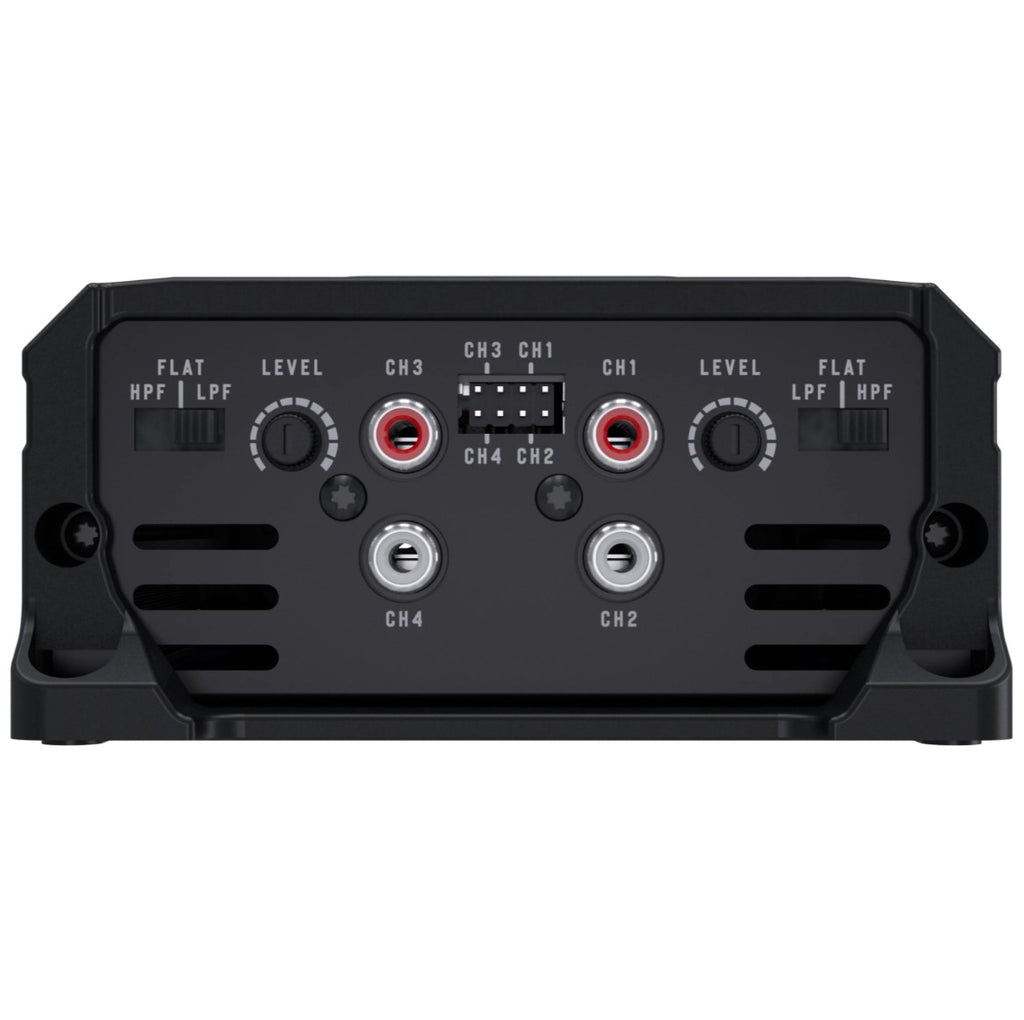

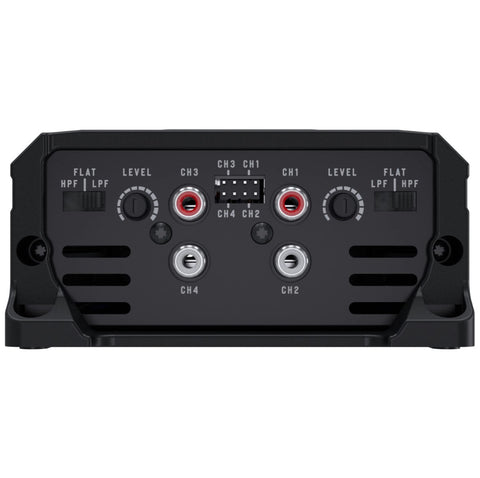

Integrated CROSSOVER and LEVEL Controls
Allows precise tuning of frequency response and individual channel power.

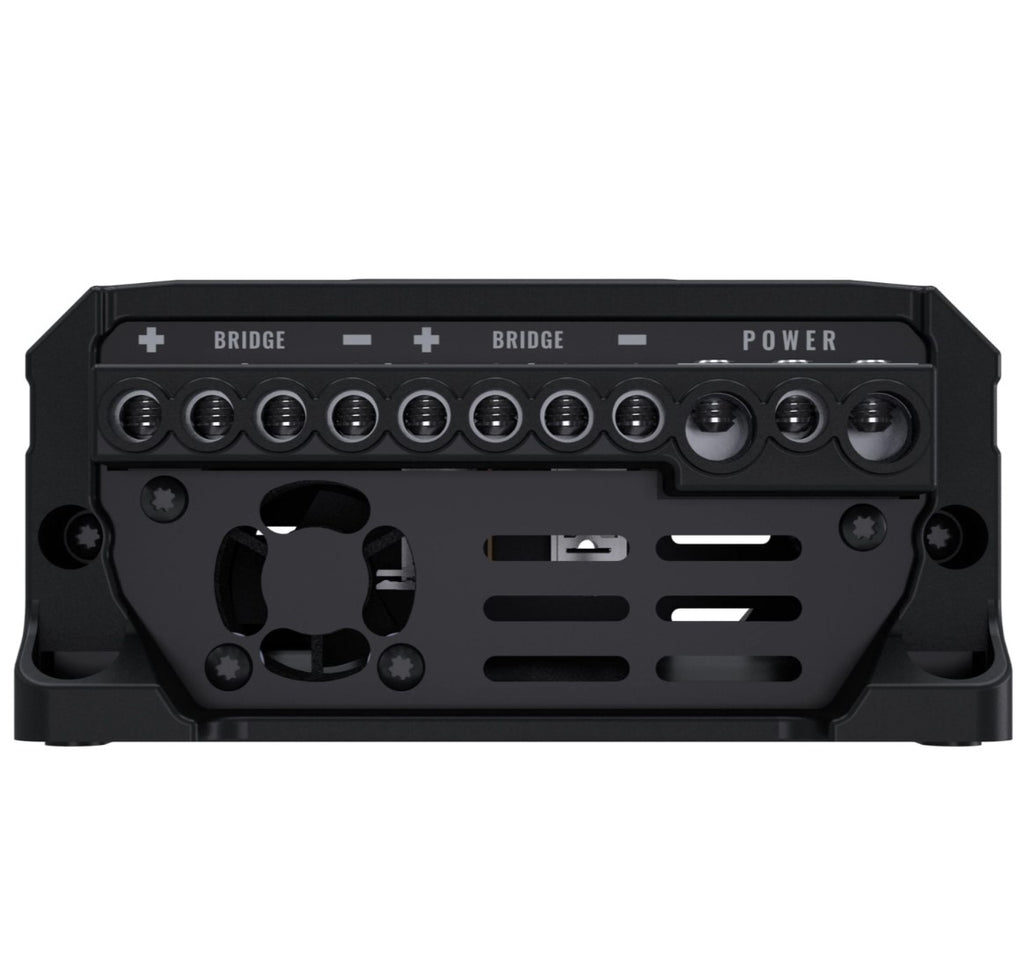

Durable and Easy-to-Install Connectors
Provides secure and practical installation for any audio setup.
Highly Compatible with a Variety of Speakers
Perfect for both indoor and outdoor audio systems, and suitable for use with subwoofers, woofers, horns, and tweeters.
Manual Download Link: https://stetsom.com.br/manual/manual_cl800.pdf
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | CL800.4 |
|---|---|
| Number of Channels | 4 |
| RMS Power | 800W |
| RMS Power at 4 Ohm | 2 x 400W @ 14,4V (BRIDGE) |
| RMS Power at 2 Ohm 14.4V | 4 x 200W |
| RMS Power at 4 Ohm 14.4V | 4 x 110W |
| Supply Voltage | 9V ~ 15V DC |
| Frequency Response | 10Hz ~ 20KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90dB |
| Input Sensitivity | RCA: 230mV / HIGH: 1.5V |
| Input Impedance | RCA: 23K Ohms / HIGH: 1K Ohm |
| Impedance Output | STEREO: 2 OHMS / BRIDGE: 4 OHMS |
| Consumption with Signal Musical | 34A |
| Consumption with Signal Bass | 68A |

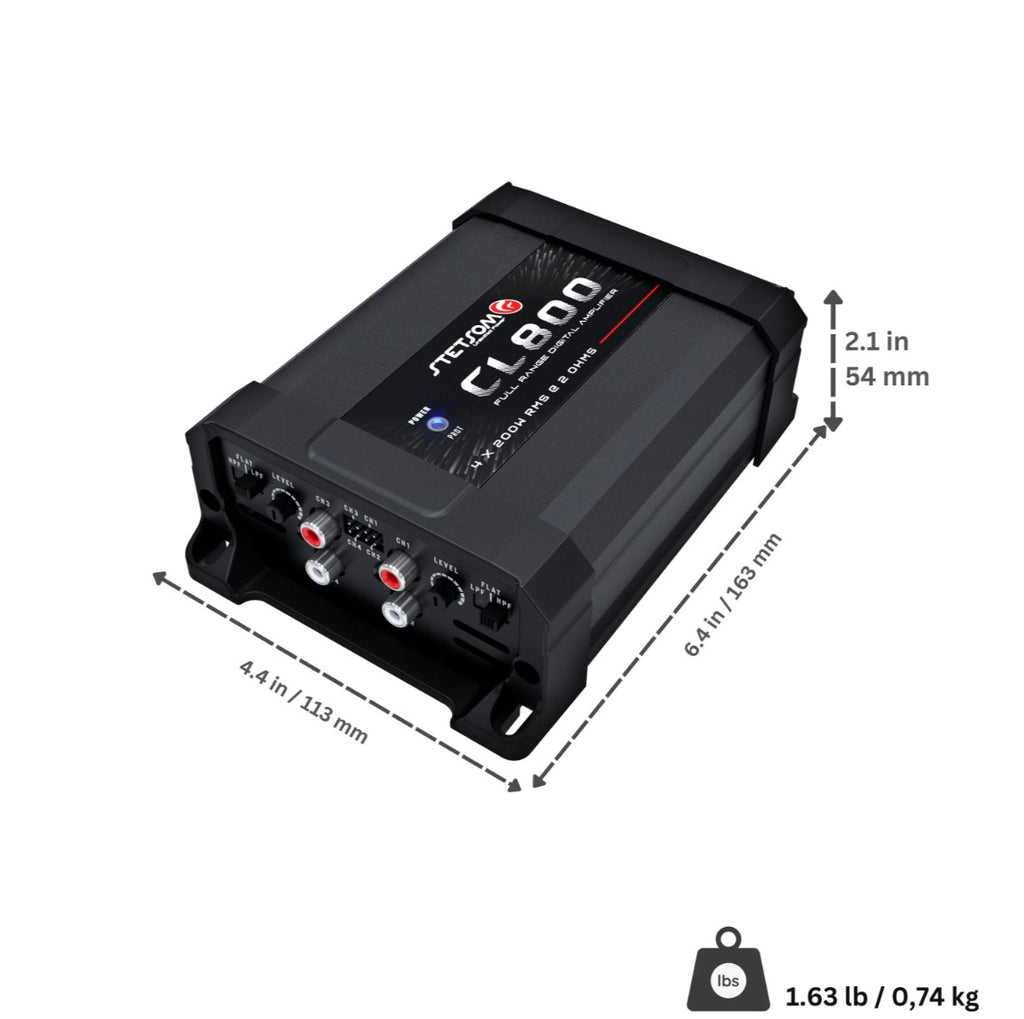

| Dimensions (H x W x D) mm | 54 x 113 x 163 mm |
| Weight Kg | 0,74 Kg |
