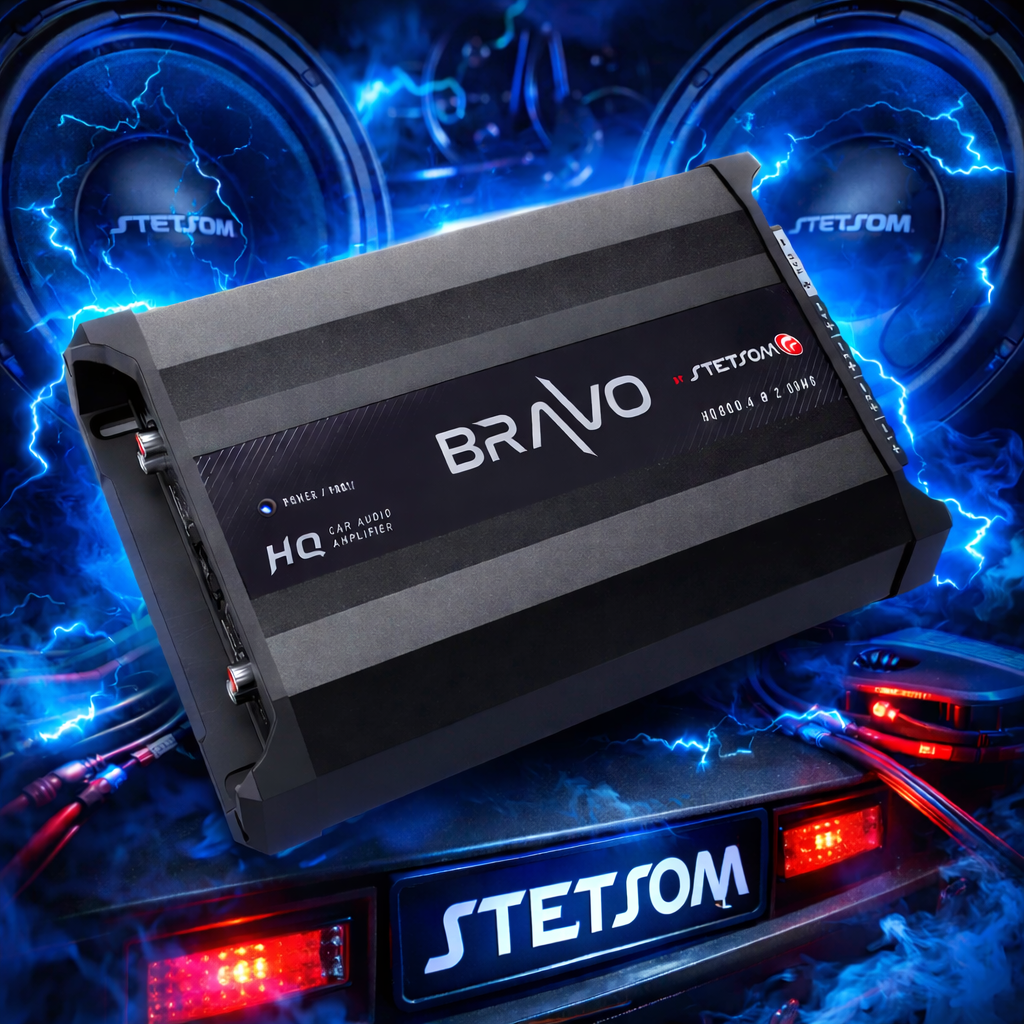

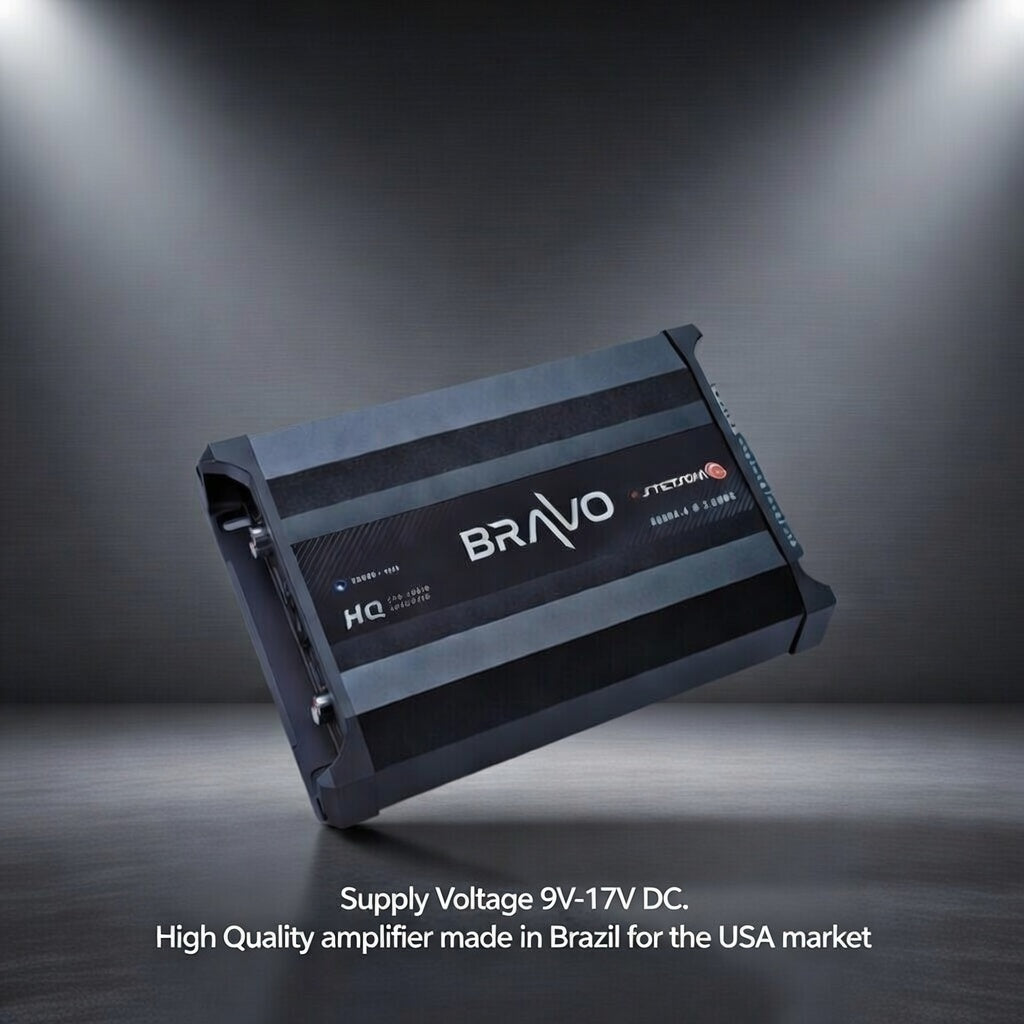

STETSOM BRAVO HQ 800.4 2ohm
The BRAVO FULL line was developed for car audio enthusiasts seeking maximum performance and quality in amplifiers.
Its frequency response of 10Hz to 15kHz offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ800.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 800W |
| RMS Power at 2 Ohm 12.6V | 4 x 200W |
| RMS Power at 4 Ohm 12.6V | 4 x 130W |
| RMS Power at 2 Ohm 14.4V | 4 x 250W |
| RMS Power at 4 Ohm 14.4V | 4 x 170W |
| Power @ 12.6V Bridge 4 Ohms | 2 x 400W |
| Supply Voltage | 9V ~17V DC |
| Frequency Response | 5Hz ~22Khz |
| Crossover Low Pass | 50Hz ~2,3K (Variable) |
| Crossover High Pass | 50Hz ~2,3K (Variable) |
| Signal to Noise | >80dB |
| Input Sensitivity | RCA: 250mV / HIGH: 1,5V |
| Input Impedance | RCA: 18K Ohms / HIGH: 1K Ohms |
| Consumption with Signal Musical | 43A |
| Consumption with Signal Bass | 86A |
| Dimensions (H x W x D) mm | 58,5 x 167 x 235,5 mm |
| Weight Kg | 1,5 Kg |
