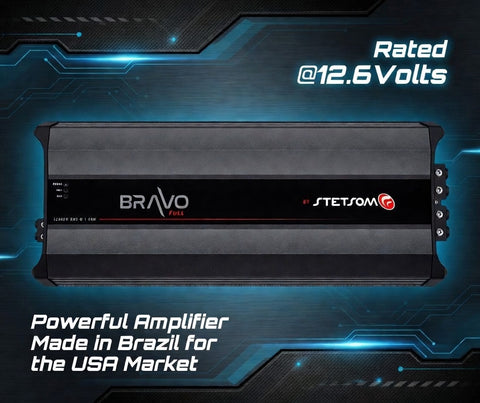

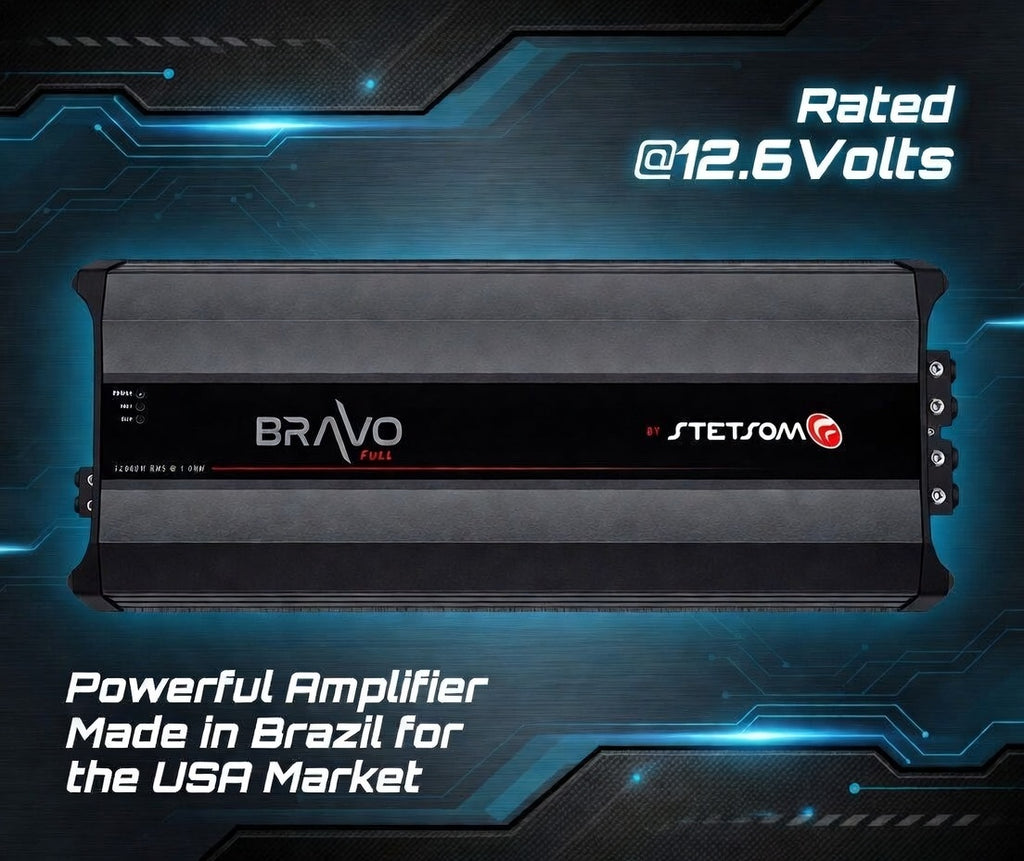

STETSOM BRAVO FULL 12000 1OHM
The BRAVO FULL line was developed for car audio enthusiasts seeking maximum performance and quality in FULL-RANGE amplifiers.
Its frequency response of 5Hz to 7kHz offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO FULL 12000 – 1 OHM |
|---|---|
| Number of Channels | 1 |
| RMS Power | 12.000W |
| RMS Power at 1 Ohm 12.6V | 12.000W |
| RMS Power at 2 Ohm 12.6V | 7.120W |
| RMS Power at 1 Ohm 14.4V | 12.800W |
| RMS Power at 2 Ohm 14.4V | 8.510W |
| Supply Voltage | 9V ~ 16V DC |
| Frequency Response | 5Hz ~ 7KHz @ 1 Ohm |
| Crossover Low Pass | 90Hz ~ 7KHz |
| Crossover High Pass | 5Hz ~ 90Hz |
| Signal to Noise | >90dB |
| Input Sensitivity | 200mV |
| Input Impedance | 19K Ohms |
| Impedance Output | 1 OHM |
| Consumption with Signal Musical | 590A |
| Consumption with Signal Bass | 1180A |
| Dimensions (H x W x D) mm | 79,7 x 574 x 231,5 mm |
| Weight Kg | 8,6 Kg |
