- Powerful and high-quality car audio amplifier with 8000 watts RMS output exclusively made for BASS and SUB BASS
- FLEX - Automatic Impedance System that adjusts the impedance of the amplifier from 0.5 to 1 Ohm according to speaker needs (see table of possible combinations in the description)
- Smart and Silent Coolers ensure efficient and noise-free operation of the amplifier
- In/Out Audio RCA allows for optional use with another amplifier. Up to 7 AWG Speakers connectors and up to 00 AWG DOUBLE power and DOUBLE ground connectors for powerful and stable operation

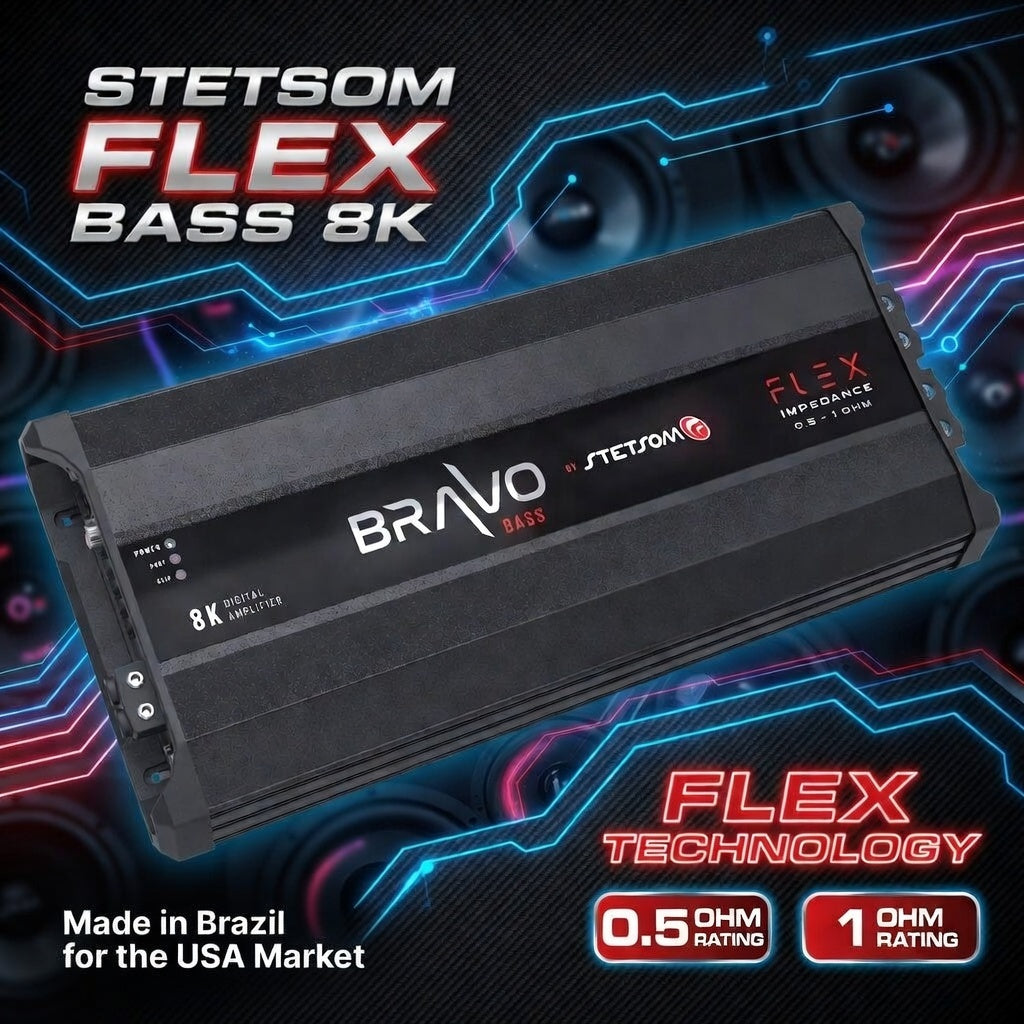

- BRAVO BASS LINE - Compact and stylish design that fits easily into any car. Provides maximum performance in BASS and SUB BASS, perfect for automotive sound enthusiasts.
The BRAVO BASS FLEX line has been developed for those seeking performance and versatility, allowing the use of various speakers with a wide range of impedances.
Its automatic impedance detection system automatically adjusts the product’s audio output to optimize efficiency and power, ensuring high-quality audio reproduction.
With a frequency response from 5Hz to 200Hz, it’s ideal for subwoofer-type speakers, and its multi-impedance system operates between 0.5Ω to 1Ω.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO BASS FLEX 8K |
|---|---|
| Number of Channels | 1 |
| RMS Power | 8.000W |
| RMS Power at 0.5 Ohm | 8.800W @ 14,4V |
| RMS Power at 0.8 Ohm | 8.700W @ 14,4V |
| RMS Power at 1 Ohm 14.4V | 9.000W |
| Supply Voltage | 9V ~17V DC |
| Frequency Response | 5Hz ~ 200Hz |
| Crossover Low Pass | 30Hz ~ 200Hz |
| Crossover High Pass | 5Hz ~ 40Hz |
| Signal to Noise | >90dB |
| Input Sensitivity | 0,2V ~ 6V |
| Input Impedance | 55K Ohms |
| Impedance Output | 0,5 ~ 1 OHM (AUTO) |
| Consumption with Signal Musical | 390A |
| Consumption with Signal Bass | 780A |
| Subsonic Filter | ✓ |
| Dimensions (H x W x D) mm | 79,5 x 231,5 x 494 mm |
| Weight Kg | 7,10 Kg |
