BOX HEALTHY RECOMMENDATION
Every vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
1.75ft-2.5ft tuned @35hertz with 12-16square inch of port area per cubic foot.
4th order utilize a 2:1 ratio. (as close as possible)
Any other enclosure help, or would like us to make one custom please email us firstname.lastname@example.org
MOUNTING DEPTH 7.25" | CUTOUT 13.9"

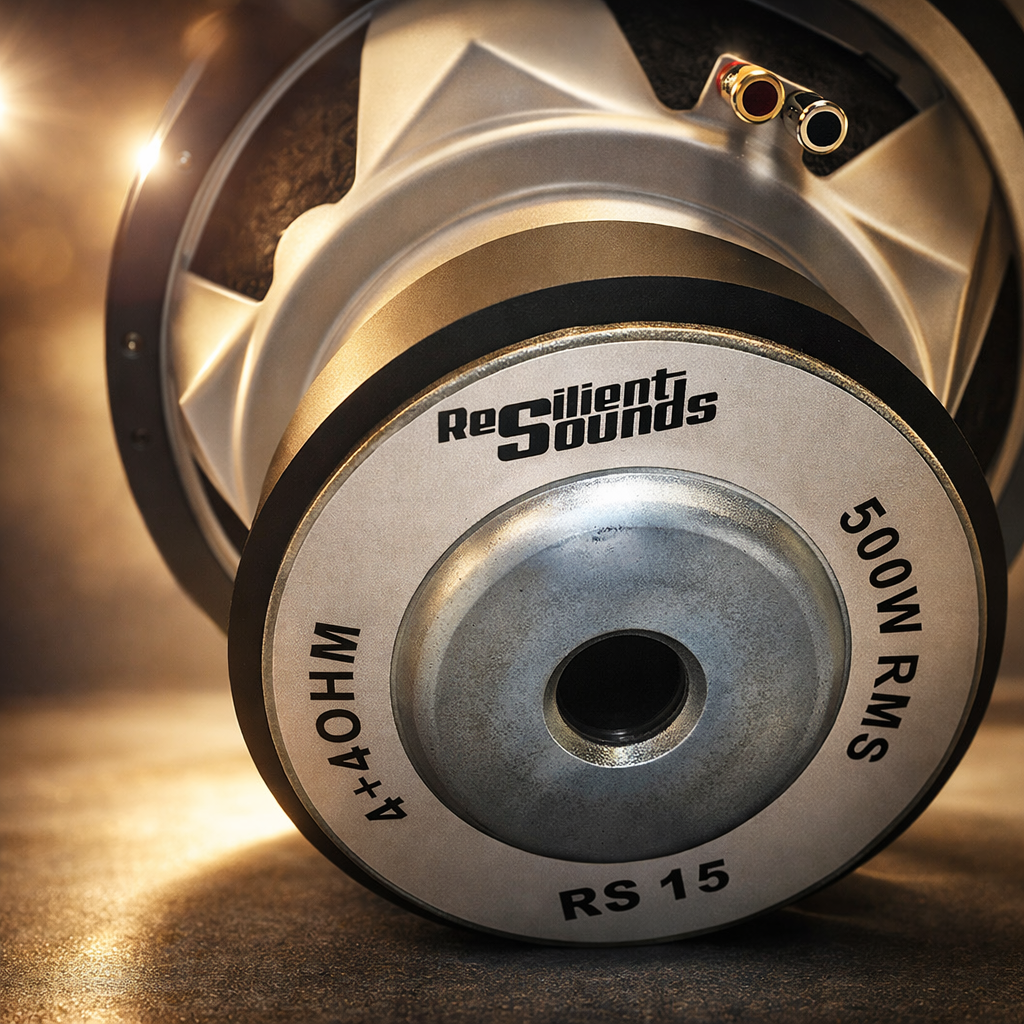

The RS Series wasn’t built to be your average budget driver. Instead we went above and beyond with our entry level RS-12 and RS-15 featuring 3” 4 layer VC, triple stacked nomex spiders, and a 130 oz motor! Even though this is our entry line, they will surely exceed your expectations for their performance and musical quality!
Voice Coil: Dual 3" 4 Layer D4 Ohm Load
XMAX: 14mm one-way @70%BL
SPL: 88.3 dB
FMS: 27.1 Hz
Cms: 0.16 mm/N
Mms: 213.9 gr
VAS: 58.9 L
Lp: 110.5 mH
Cp: 399.2 uF
Le: 4.07 mH
