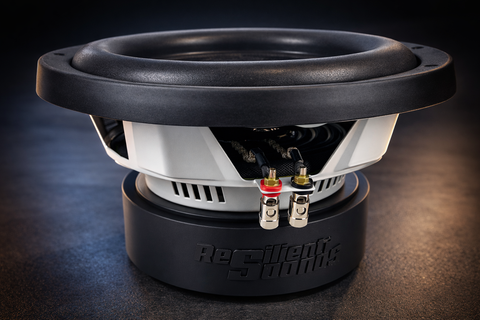

RS 10 V2 600RMS ENTRY WOOFER
| SPECS | RS 10 V2 | ||
| RMS | 600 | ||
| Voice Coil | 2.5" | ||
| Impedance | Dual 4 Ohm | ||
| SPL | 84.9 dB | ||
| FS | 36.940 Hz | ||
| BL | 27.336 | ||
| RE (Ohms) | 8 | ||
| QMS | 2.736 | ||
| QES | 0.426 | ||
| QTS | 0.368 | ||
| CMS (uM/N) | 0.17 | ||
| MMS | 171.257 g | ||
| VAS | 16.767 L |
| Enclosure Specs | ||||
| SPECS | RS 15 V2 | RS 12 V2 | RS 10 V2 | RS 8 V2 |
| Net Volume | 3.0-4.0 Cu. Ft | 1.5-2.25 Cu. Ft | 1.0-1.6 Cu. Ft | 0.5-0.75 Cu Ft |
| Tuning | 29-34Hz | 28-32Hz | 32-36Hz | 30-34Hz |
| Port area | 12-16 Sq In of Port Area per Cu Ft | 12-16 Sq In of Port Area per Cu Ft | 12-16 Sq In of Port Area per Cu Ft | 12 Sq In of Port Area per Cu Ft |
