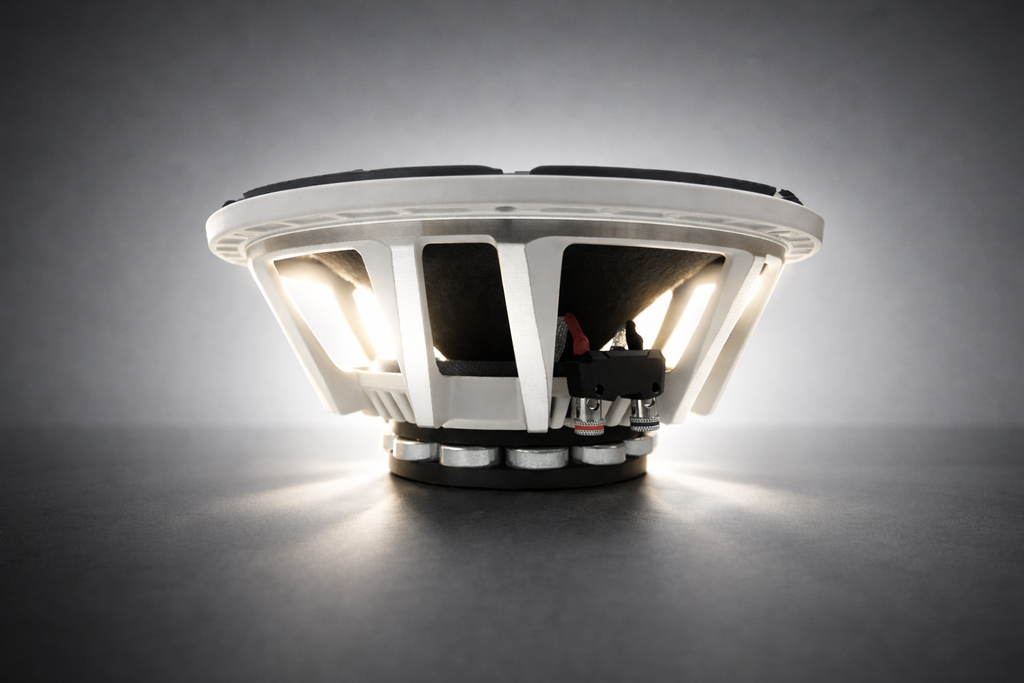

Neo 10
1000 Watts Max Power Handling
2.5" Voice Coil
98.5 dB Sensitivity
75HZ-6.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 10” (254mm)
Max Power Handling 1000 w
RMS Power Handling 500 w
Frequency Response 75Hz-6.5KHZ
Nominal Impedance 4ohm
Sensitivity 98.5dB
Magnet Neodymium
Voice Coil Diameter 2.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 26.8 L
Free Air Resonance Fs 76 Hz
Mechanical Factor Qms 4.5
Electrical Factor Qes 0.37
Total Factor Qts 0.34
Cone Area Sd 349.6cm²
Mechanical Mass Mms 27.96 g
BI Factor BI 10.77 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 10.31”(262mm)
Front Mount Baffle Cutout 9.25"(235mm)
Mounting Depth 4.09"(104mm)
Overall Depth 4.52"(115mm)
