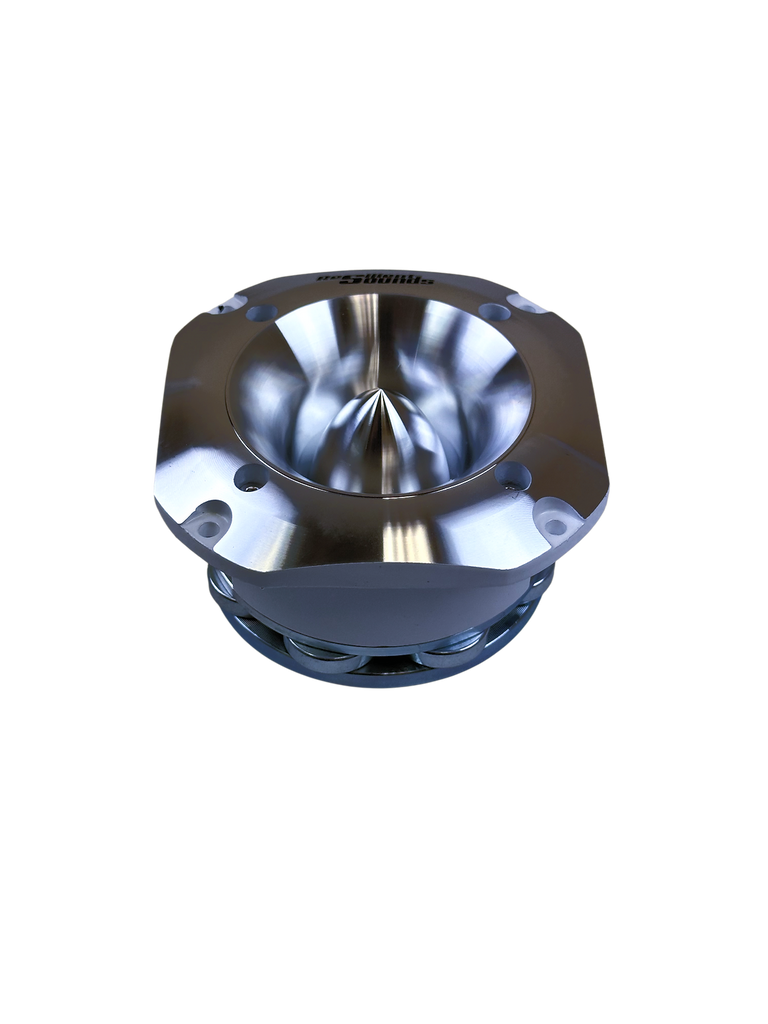

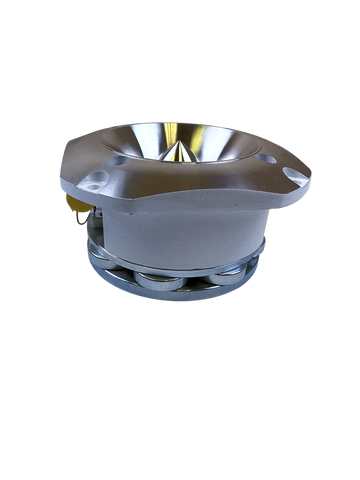

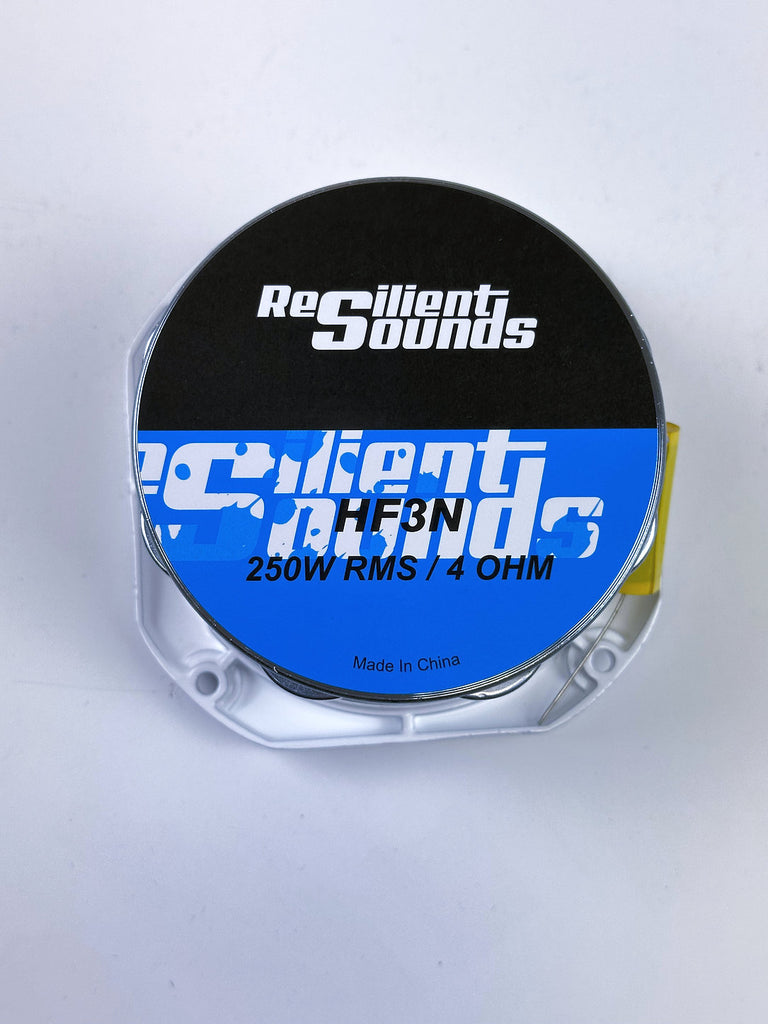

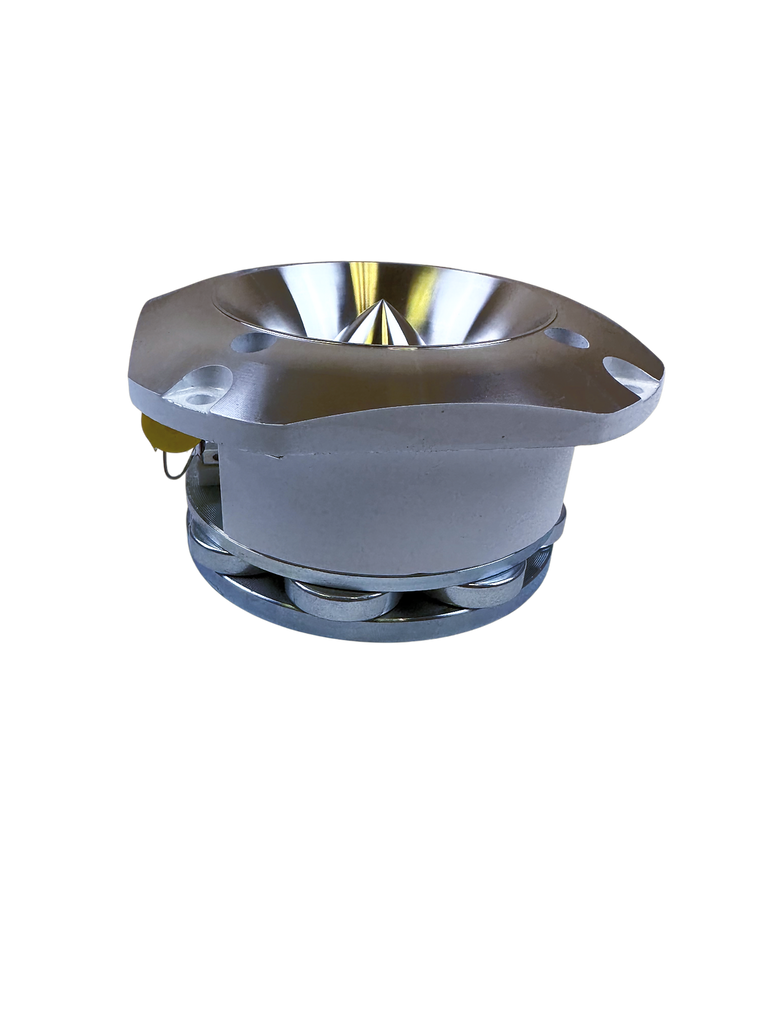

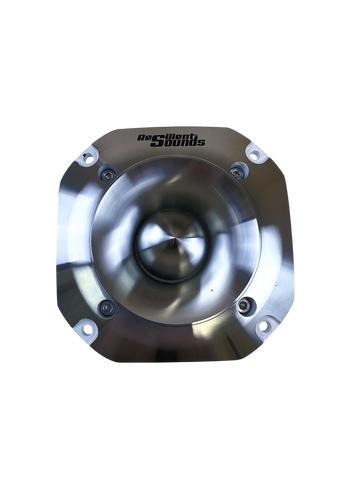

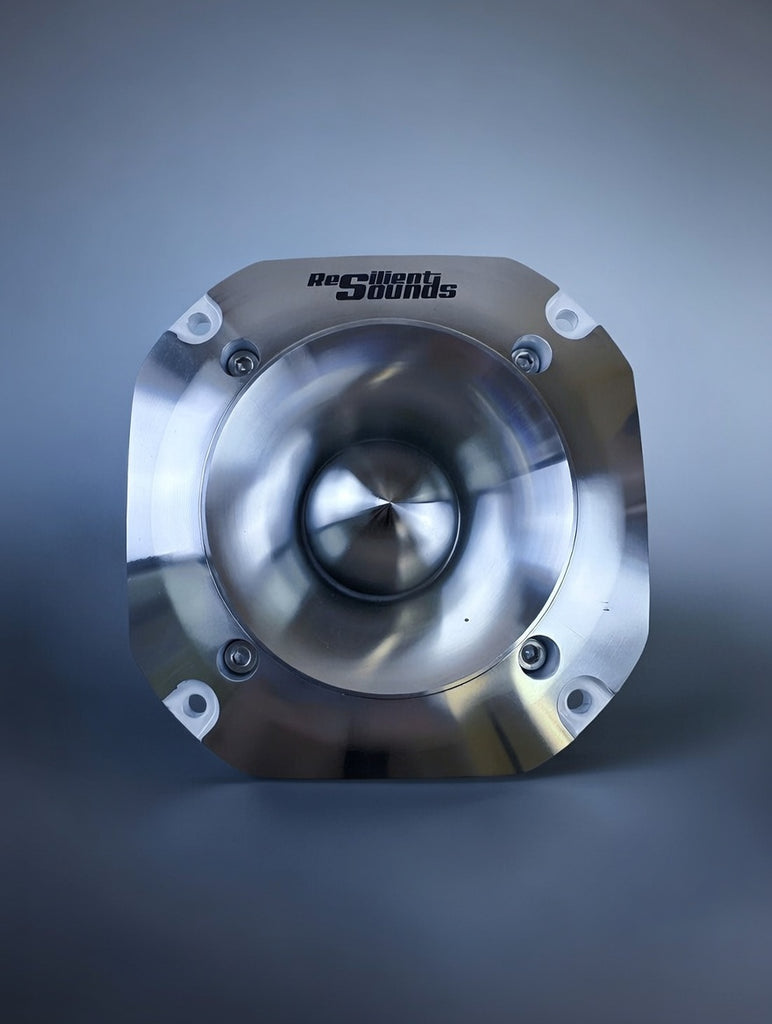

Resilient Sounds HF3N 4" 500W High Compression Tweeter
SOLD INDIVIDUALLY
The Resilient Sounds HF3N 4" Tweeter is engineered for high-output car audio systems that demand extreme clarity and volume. Featuring a 1.5” voice coil, neodymium magnet, and wide frequency response of 4 kHz – 20 kHz, this tweeter delivers precise and powerful highs that cut through any system. With an impressive 110 dB sensitivity, the HF3N is built for efficiency, ensuring maximum sound output even at lower power levels. Perfect for both SPL competition builds and high-powered daily systems, this tweeter combines durability, compact design, and uncompromising performance.
Key Features
-
500 Watts Max Power / 250 Watts RMS – built to handle high-output applications
-
Extreme Loudness with 110 dB Sensitivity – crystal-clear highs at competition levels
-
Wide Frequency Response: 4 kHz – 20 kHz – delivers sharp, detailed treble range
-
1.5” Voice Coil – lightweight, durable, and heat resistant
-
High-Strength Neodymium Magnet – strong magnetic force in a compact size
-
4” Aluminum Horn Design – optimized for clarity and projection
-
Compact Mounting Depth (1.76”) – easy installation in tight spaces
Technical Specifications
-
Nominal Diameter: 4” (102.5mm)
-
Max Power Handling: 500W
-
RMS Power Handling: 250W
-
Frequency Response: 4 kHz – 20 kHz
-
Nominal Impedance: 4Ω
-
Sensitivity: 110 dB
-
Magnet: Neodymium
-
Voice Coil Diameter: 1.5” (38mm)
-
Voice Coil Wire: CCAW
Mounting Info
-
Overall Diameter: 4” x 4” (102.5mm x 102.5mm)
-
Cutout Diameter: 3.6” (91.5mm)
-
Mounting Depth: 1.76” (44.8mm)
-
Overall Depth: 2.28” (57.9mm)
Why Choose the HF3N Tweeter?
The HF3N is designed for car audio enthusiasts who want maximum output, competition-level clarity, and reliable performance in a compact tweeter. Whether you’re building a daily system with sharp highs or competing in SPL sound competitions, this tweeter ensures your music cuts through with precision and impact.
