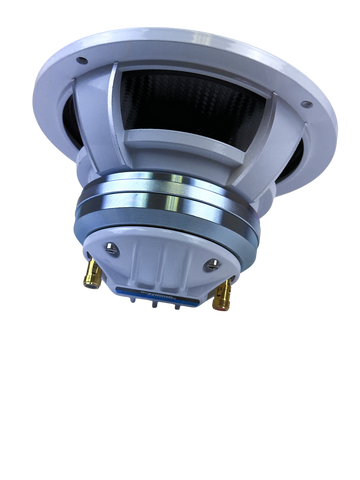

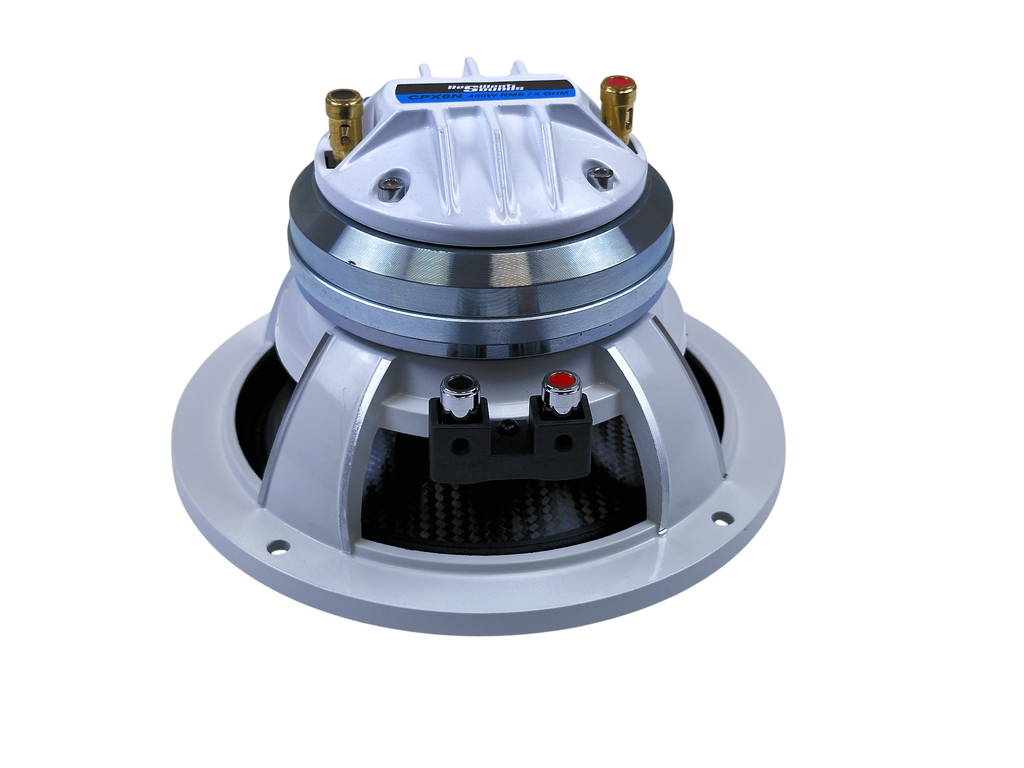

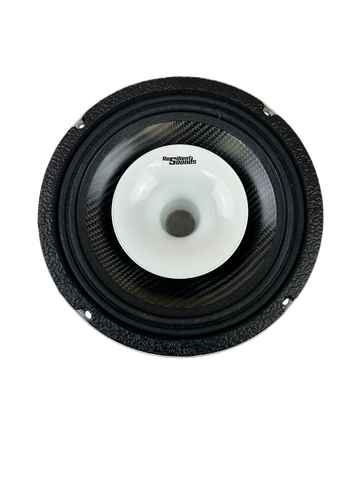

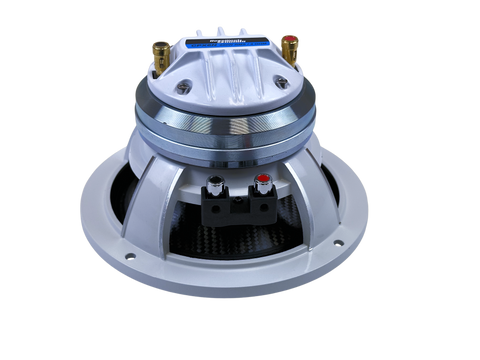

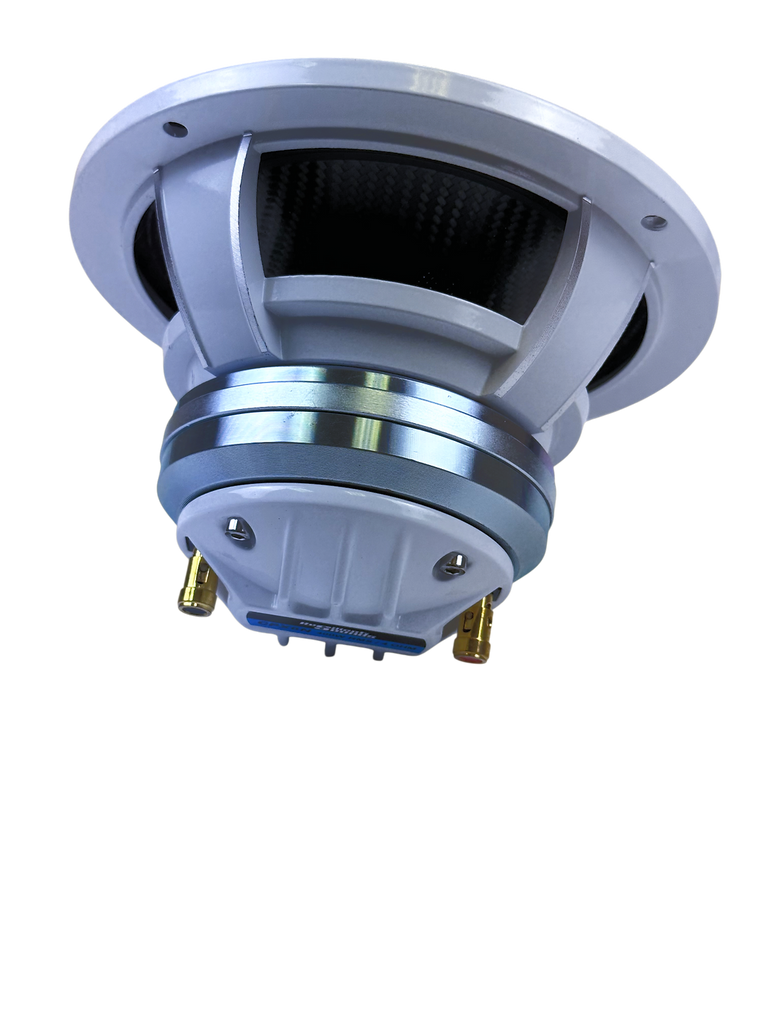

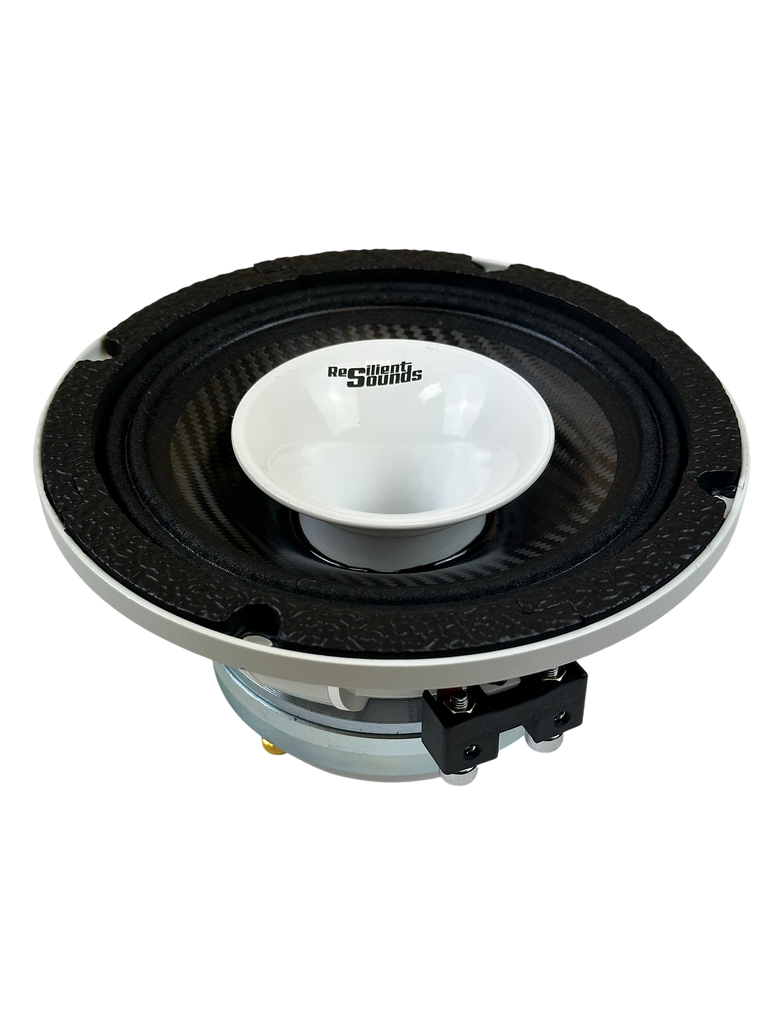

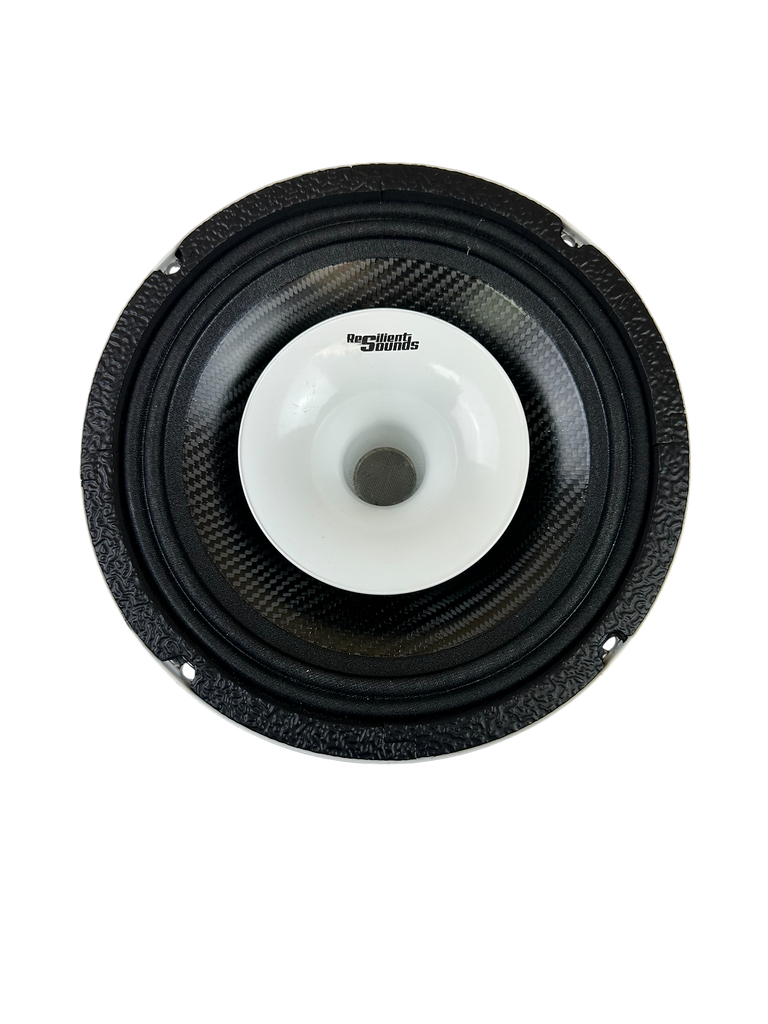

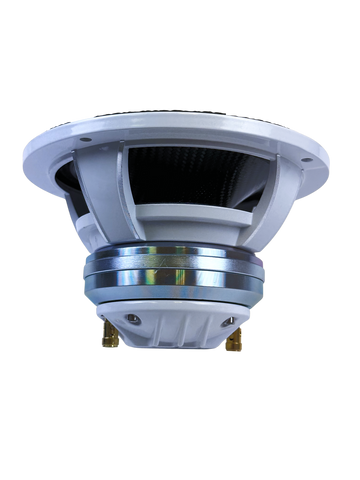

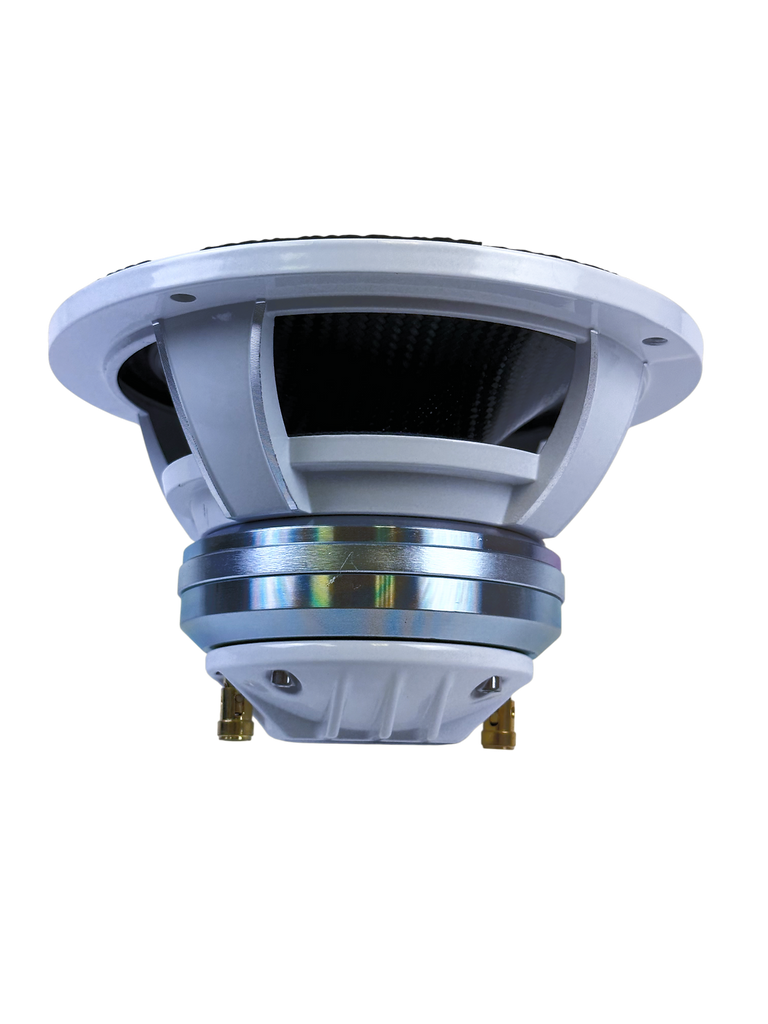

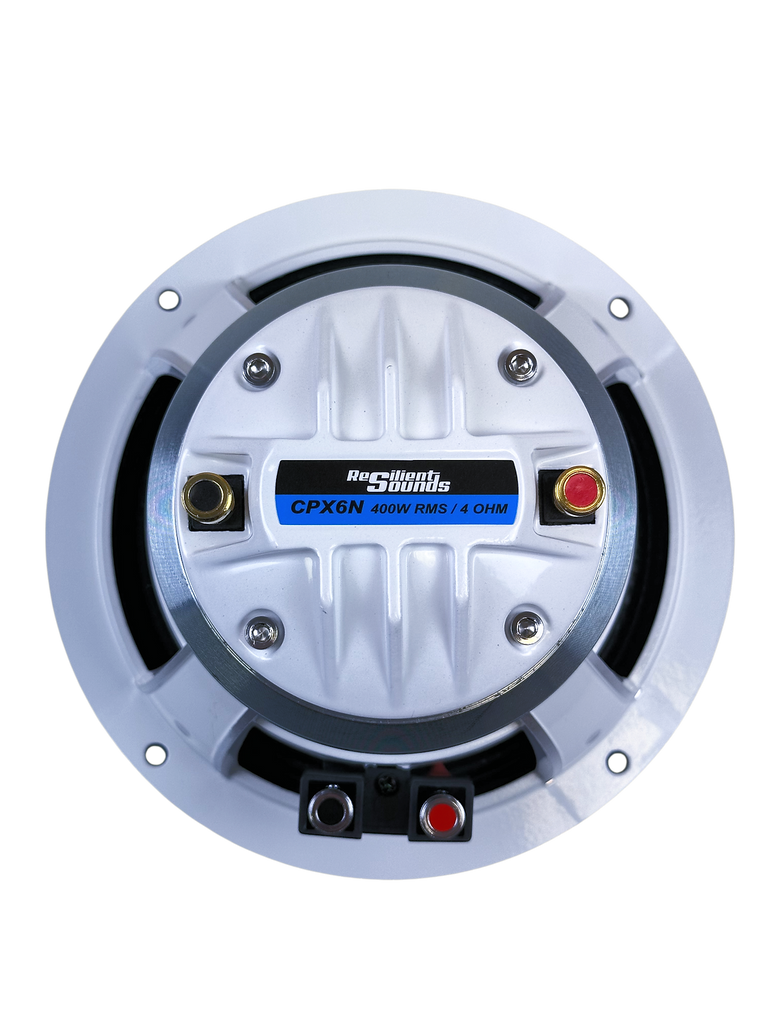

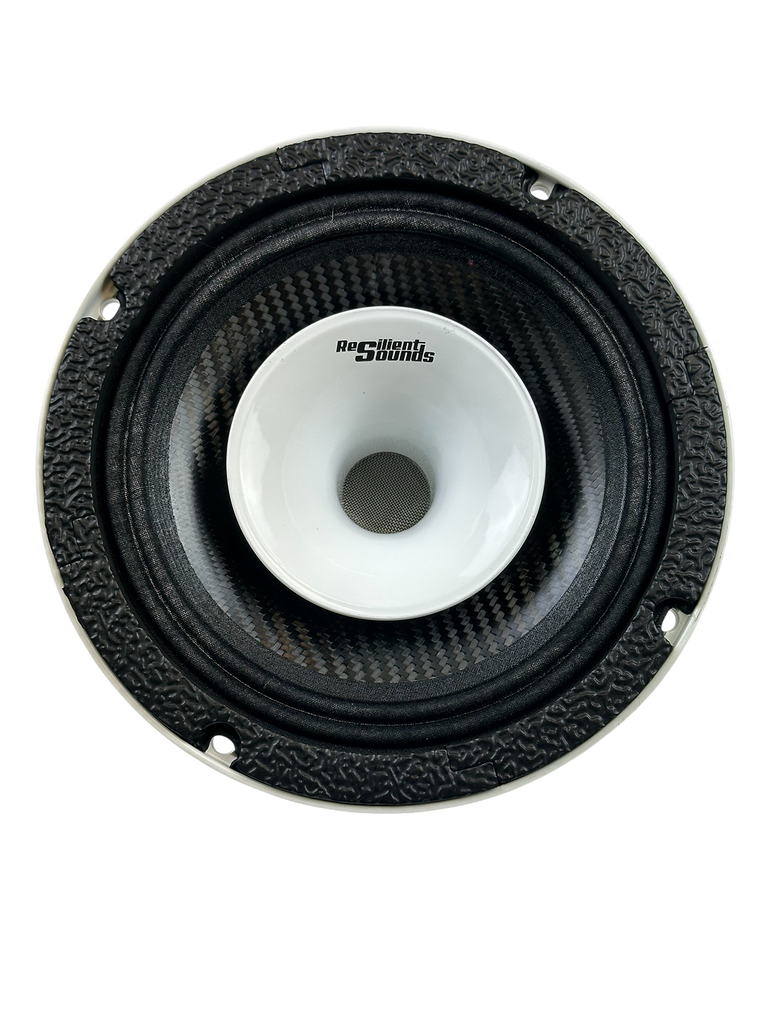

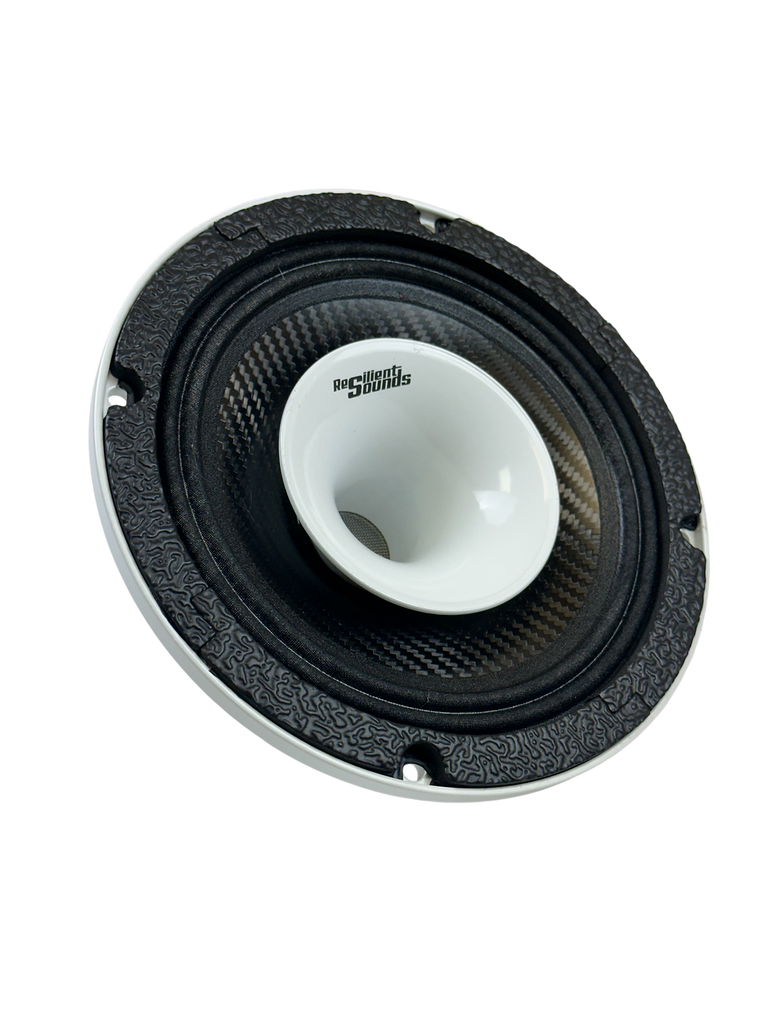

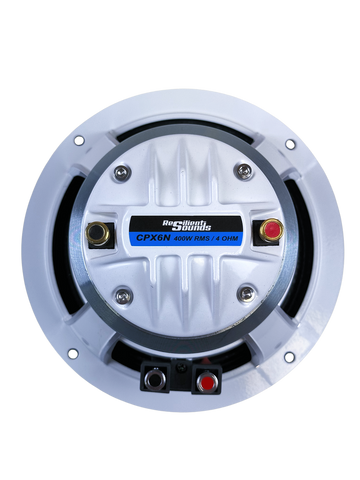

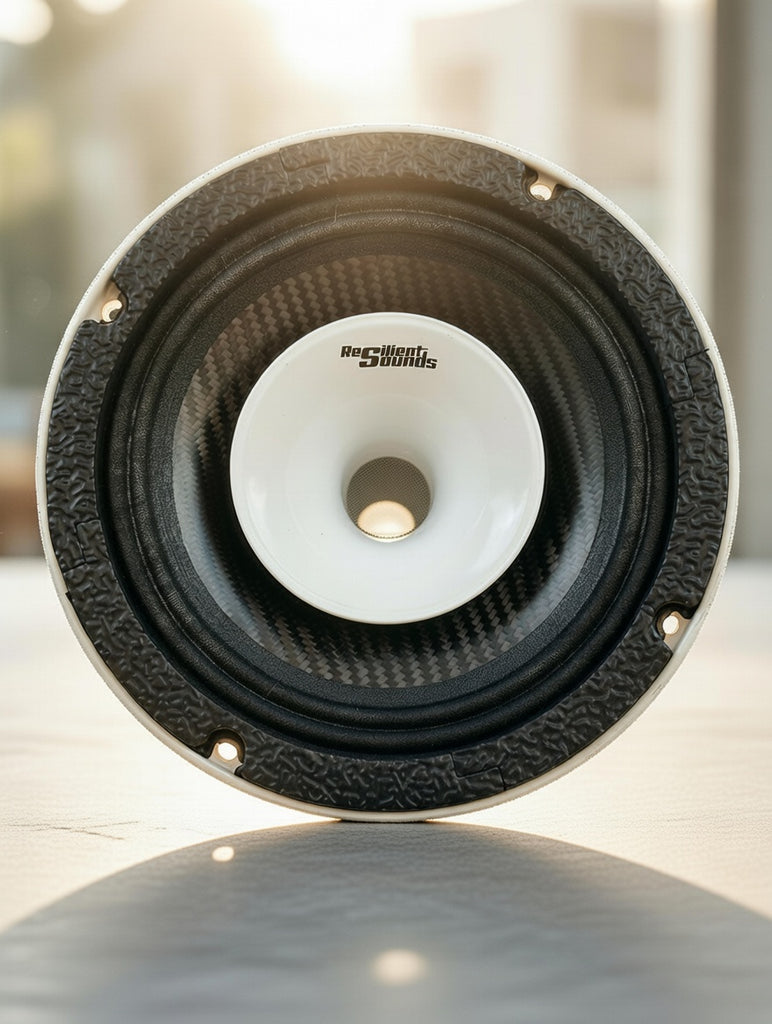

Resilient Sounds CPX6N 6.5" 800W Neodymium Pro Audio Hybrid Loudspeaker with Horn
SOLD INDIVIDUALLY
Bring your system to life with the Resilient Sounds CPX6N, a powerhouse 6.5-inch midrange speaker engineered for extreme clarity, volume, and durability. Featuring a lightweight neodymium motor and 2” high-temp voice coil, the CPX6N is built to handle 800 watts of peak power while maintaining incredible efficiency. Whether you’re chasing competition-level sound or upgrading your daily driver, the CPX6N delivers unmatched output and precision.
🔑 Key Features
-
800W Max Power / 400W RMS – High-output performance with clean sound.
-
2” High-Temp Voice Coil – Withstands extreme heat for long play sessions.
-
Neodymium Magnet Motor – Stronger magnetic force in a lighter, more efficient package.
-
100 dB Sensitivity – Extremely efficient, producing massive sound with less power.
-
Wide Frequency Response (130Hz – 20kHz) – Covers deep midbass through crisp vocals and highs.
-
Vented Motor Design – Enhanced cooling prevents compression at high power.
-
Rigid Cone & Surround – Reduced distortion and maximum clarity.
-
Compact Mounting Depth (3.70”) – Fits tight spaces without sacrificing performance.
-
Competition-Grade Build – Designed for SPL competitors and serious audio enthusiasts.
-
Water-Resistant Carbon Fiber Cone – Lightweight, rigid, and moisture-resistant for superior durability and sound accuracy.

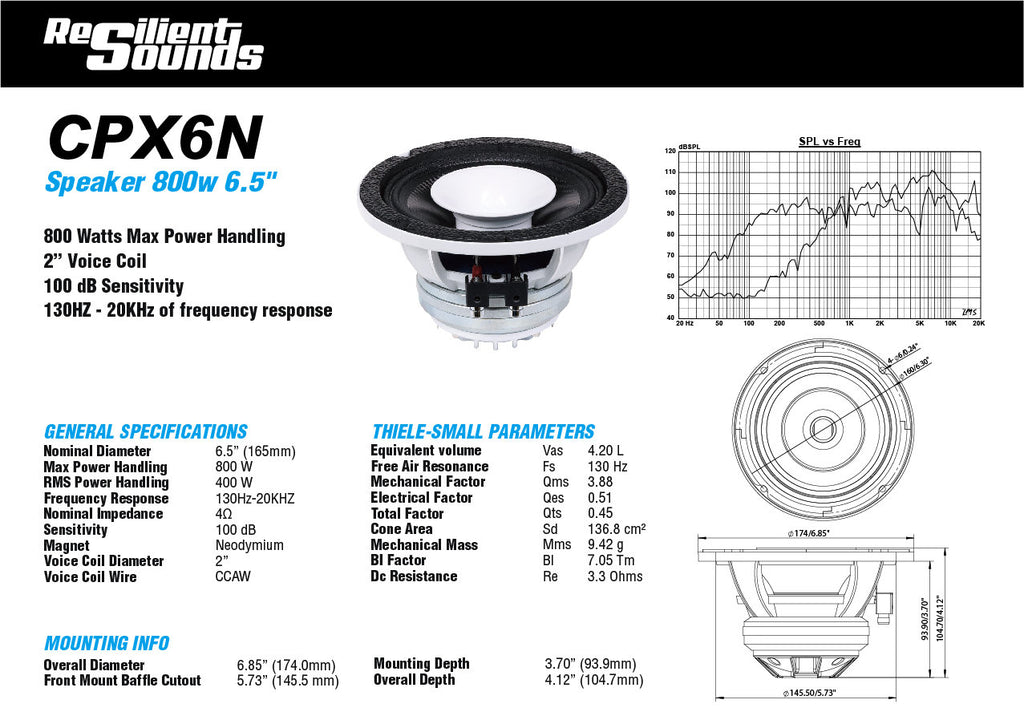

📊 General Specifications
-
Speaker Size: 6.5” (165 mm)
-
Max Power Handling: 800 W
-
RMS Power Handling: 400 W
-
Frequency Response: 130 Hz – 20 kHz
-
Nominal Impedance: 4 Ω
-
Sensitivity: 100 dB
-
Voice Coil Diameter: 2”
-
Voice Coil Wire: CCAW (Copper-Clad Aluminum Wire)
-
Magnet Type: Neodymium
⚙️ Thiele-Small Parameters
-
Vas (Equivalent Volume): 4.20 L
-
Fs (Free Air Resonance): 130 Hz
-
Qms (Mechanical Factor): 3.88
-
Qes (Electrical Factor): 0.51
-
Qts (Total Factor): 0.45
-
Sd (Cone Area): 136.8 cm²
-
Mms (Mechanical Mass): 9.42 g
-
BL (Force Factor): 7.05 Tm
-
Re (DC Resistance): 3.3 Ω
📐 Mounting Information
-
Overall Diameter: 6.85” (174.0 mm)
-
Front Mount Baffle Cutout: 5.73” (145.5 mm)
-
Mounting Depth: 3.70” (93.9 mm)
-
Overall Depth: 4.12” (104.7 mm)
✅ The Resilient Sounds CPX6N 6.5” Neodymium Midrange Speaker combines competition-grade power handling, ultra-high sensitivity, and precise engineering to deliver incredible clarity and volume in any setup. Perfect for enthusiasts who demand more from their car audio system.
